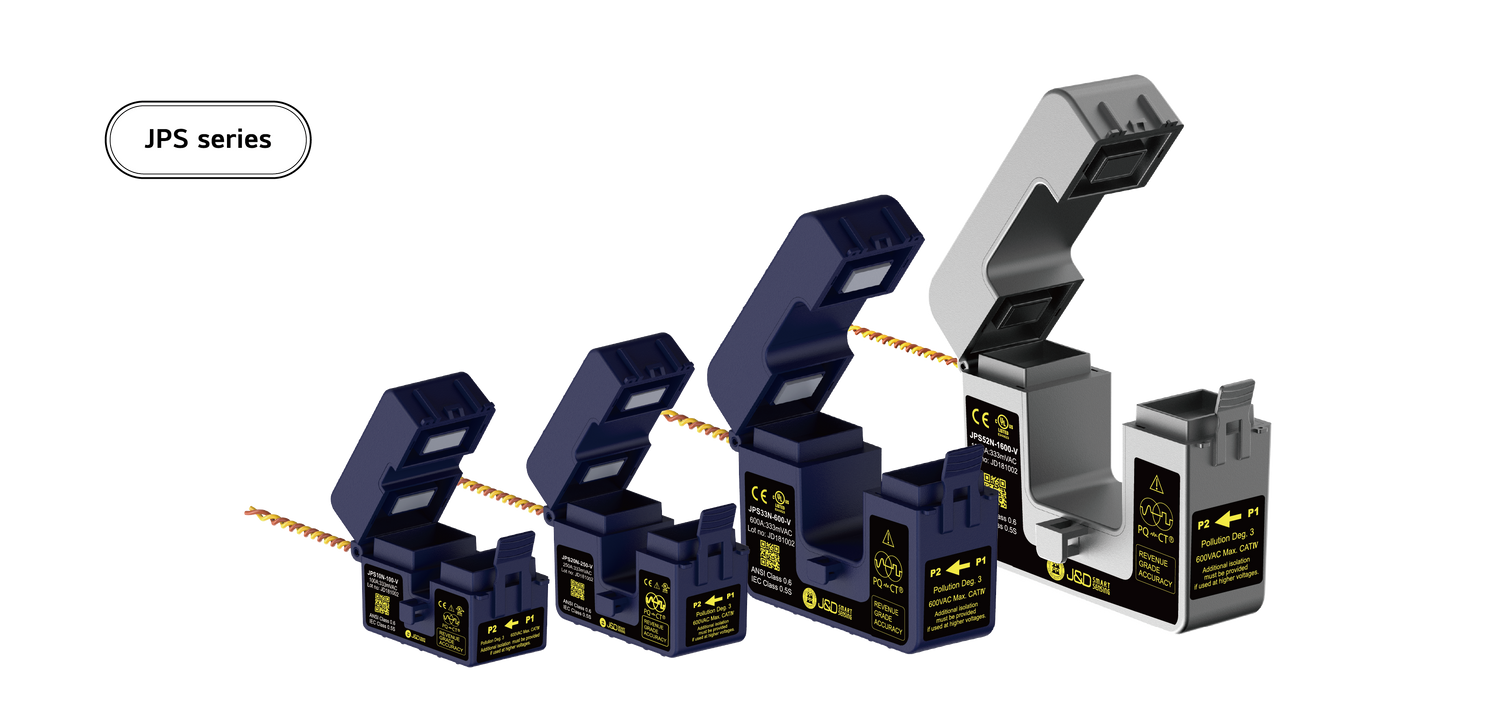

High Precision Current Transformer for Revenue-Grade Electric Power Metering
J&D JPS Series’ innovative split-core design is easy-install the CT safely, even while wearing gloves. The JPS Series line of CTs are ANSI C57.13, IEC61869-2 compliant, holding their high accuracy Class 0.2S, 0.5S.
The JPS Series currently includes four models. The JPS10, JPS20, JPS33, JPS52 feature a compact design that provides superior accuracy for loads up to 2400A and will fit parallel feeds up to 2500kcmil while complying with ANSI C12 requirements.
Featuring a safe voltage 100mV, 250mV, 333mV, 500mV, 1V, 3V AC output, and 50mA, 80mA, 0.1A, 1A, 5A AC output, the JPS Series are an ideal companion to Revenue-Grade Energy Meter, Power Quality Meter for Revenue-Grade Electric Power Metering applications. They are classified as PICQ7 for direct installation under UL/EN61010-1. These are Measurement Category CAT IV 600V (Pollution Degree 3 – Double Insulation) current transformers for building installations over insulated or bare conductors.
